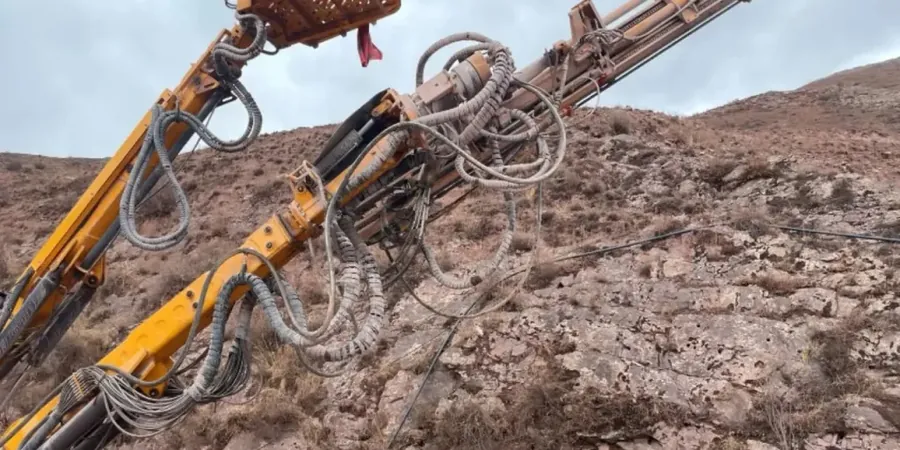

On many Burnaby job sites, the first thing you notice is the drill rig working within tight urban clearances – sometimes under existing bridge decks or inside basement parking. That is where micropile design becomes indispensable. Unlike conventional deep foundations, micropiles handle restricted access without sacrificing load capacity. We pair this technique with a georradar GPR survey when buried utilities are suspected, and with prescriptive clasificación de suelos tests to confirm soil classification before grouting begins. The result is a foundation system that adapts to Burnaby's variable glacial till and alluvial deposits.
Micropile design in Burnaby must account for variable glacial till, alluvial organics, and seismic demands – a one-size approach fails in this geology.
Service characteristics in Burnaby
- Compressive and tensile capacity under static and seismic loads
- Bond stress between grout and surrounding soil or rock
- Corrosion protection for permanent installations in Burnaby's humid climate
- Group effect and spacing to avoid overlapping stress zones
Typical technical challenges in Burnaby
Burnaby sits within the Cascadia subduction zone, where a magnitude 9.0 earthquake is statistically likely in the next 50 years. The 1946 Vancouver Island earthquake (M7.3) already demonstrated how liquefaction and lateral spreading damage pile-supported structures. In soft soils along Still Creek and the Brunette River, micropile design must include seismic ductility detailing, full-length reinforcement, and bond-length verification to prevent pullout during cyclic loading. Skipping these checks can turn a retrofit into a liability.
Our services
We offer four core services around micropile design, each adapted to Burnaby's specific subsurface conditions:
Seismic Retrofit Micropiles
Existing buildings on shallow footings in Burnaby often need underpinning to meet current seismic code. We design micropiles that transfer loads to competent till while working in crawl spaces with only 2.5 m headroom.
Tension / Uplift Micropiles
For transmission towers and bridge abutments on Burnaby's slopes, uplift resistance governs. Our design uses grout-to-ground bond values verified by site-specific pullout tests, not generic tables.
Low-Headroom Micropiles for Infrastructure
Under SkyTrain viaducts and highway overpasses, clearance is tight. We design micropiles using threaded couplers and short drill strings, achieving full capacity without modifying existing structures.
Micropile Groups for New Foundations
On soft alluvial sites near the Fraser River, we design micropile groups in a 3x3 or 4x4 pattern to spread column loads. Group efficiency factors are calculated using interaction formulas from FHWA guidelines.
Frequently asked questions
How much does micropile design cost in Burnaby?
The typical range for a residential or light commercial micropile design in Burnaby is between CA$1.820 and CA$5.890, depending on the number of piles, load requirements, and whether a site-specific pullout test is needed. For larger projects the per-pile design cost drops significantly.
What soil conditions in Burnaby require micropiles instead of driven piles?
Micropiles are preferred in Burnaby where access is limited (e.g., inside existing basements, under bridges) or where driven piles would cause excessive vibration near sensitive structures. They also suit sites with boulders within glacial till, since the drill string can penetrate obstructions that would damage a driven pile.
Do micropiles count as a deep foundation for Burnaby building permits?
Yes – the City of Burnaby classifies micropiles as deep foundations under NBCC 2020. A geotechnical report with micropile design calculations, corrosion protection details, and load test protocol must be submitted with the permit application. We prepare all required documentation including pile layout plans and grout mix specifications.
