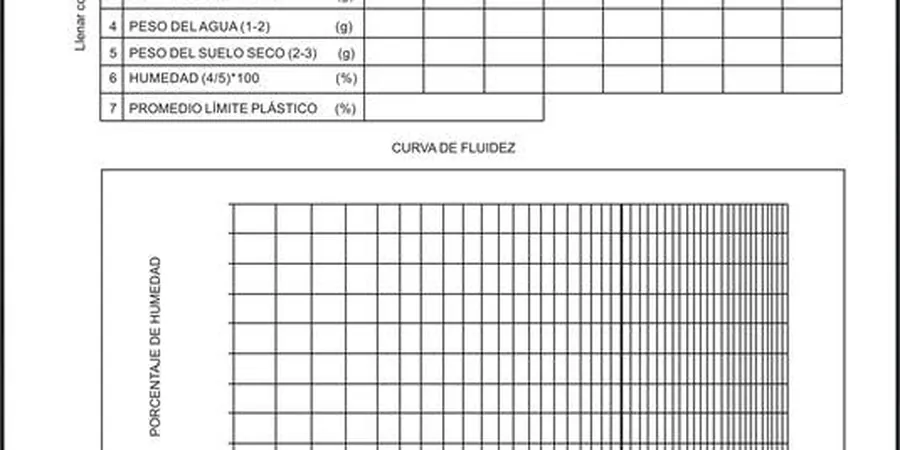

The lab technician prepares the Casagrande cup device, adjusting the drop height precisely to 10 mm on the hardened rubber base. For Burnaby projects, the sample of glacial till is first air-dried and passed through a No. 40 sieve before mixing with distilled water to form a uniform paste. The liquid limit test runs at 25 blows per trial, while the plastic limit relies on rolling threads to 3.2 mm diameter until cracking begins. This method, following CSA A23.2-2A, provides critical data for classifying soils under the Unified Soil Classification System. Combining Atterberg limits with a granulometry analysis gives engineers a complete picture of the soil's fine fraction behavior.
Marine clays in Burnaby near Burnaby Lake show plasticity indices exceeding 35, requiring careful foundation design per NBCC 2020 provisions.
Service characteristics in Burnaby
Typical technical challenges in Burnaby
The coastal climate of Burnaby, with annual precipitation exceeding 1,200 mm, creates persistently moist soil conditions that can skew Atterberg limits results if samples are not properly preserved. Marine clay deposits in the southwest quadrant of the city are particularly sensitive to moisture changes during sampling and transport. A sample that dries out before reaching the lab may show artificially low liquid limit values, leading to underestimation of the soil's plasticity. For projects near Deer Lake or the Still Creek corridor, the risk of organic matter contamination also affects plastic limit readings. Proper sealed sampling and expedited testing within 48 hours of extraction mitigate these risks.
Our services
Our Burnaby geotechnical lab provides a full suite of fine-grained soil testing services beyond standard Atterberg limits. Each service integrates with local ground conditions.
Combined Atterberg Limits with Natural Moisture Content
Simultaneous determination of liquid limit, plastic limit, and natural moisture content on the same Burnaby sample. This package is ideal for marine clay projects where water content variations directly affect plasticity index calculations and subsequent foundation recommendations.
Afterberg Limits on Sieved Fractions
Testing on the minus No. 40 and minus No. 200 fractions separately for Burnaby soils with significant silt-clay mixtures. Useful for projects in the Brentwood area where glacial till contains both sand and fines requiring separate classification.
Plasticity Index with Shrinkage Limit Correlation
Extended analysis including shrinkage limit determination for Burnaby's expansive soils. This package helps predict volume changes in clay-rich zones near the Burnaby Mountain area, critical for slab-on-grade foundations and basement wall design.
Frequently asked questions
What is the typical cost for Atterberg limits testing in Burnaby?
The typical cost for a standard Atterberg limits test (liquid and plastic limit on one sample) in the Burnaby area ranges from CA$80 to CA$140 per sample. Volume discounts apply for projects requiring multiple samples, such as subdivisions or multi-zone developments. Additional charges apply for shrinkage limit or natural moisture content extras.
How long does it take to get Atterberg limits results in Burnaby?
Standard turnaround is 3 to 5 business days from sample receipt. Rush service (24 to 48 hours) is available for time-sensitive projects, typically at a 30% surcharge. Air-drying and sieving preparation takes about 24 hours, so expedited schedules require samples to arrive already air-dried.
Why are Atterberg limits important for Burnaby construction projects?
Burnaby has highly variable soils from glacial till to marine clay. Atterberg limits determine the plasticity index, which directly influences foundation design for shrink-swell potential. The NBCC 2020 requires plasticity index data for determining bearing capacity reduction factors in clay-rich soils. Projects near Burnaby Lake or the Fraser River floodplain rely on this data to avoid differential settlement in residential structures.
Can Atterberg limits predict soil liquefaction potential in Burnaby?
Atterberg limits alone cannot predict liquefaction, but they provide essential input for liquefaction assessment. The plasticity index from Atterberg limits helps classify fine-grained soils as either liquefiable (low PI) or non-liquefiable (high PI) per Youd-Idriss (2001) criteria. For Burnaby's marine clays with PI above 20, the risk of liquefaction is generally low, but for silty soils near the port area, the plasticity index is a critical screening parameter before conducting cyclic triaxial testing.
